804PB - Interface C - Coupling connector
804PB - Interface C - Coupling connector
Up to 42 kV - 630 (1250 A)

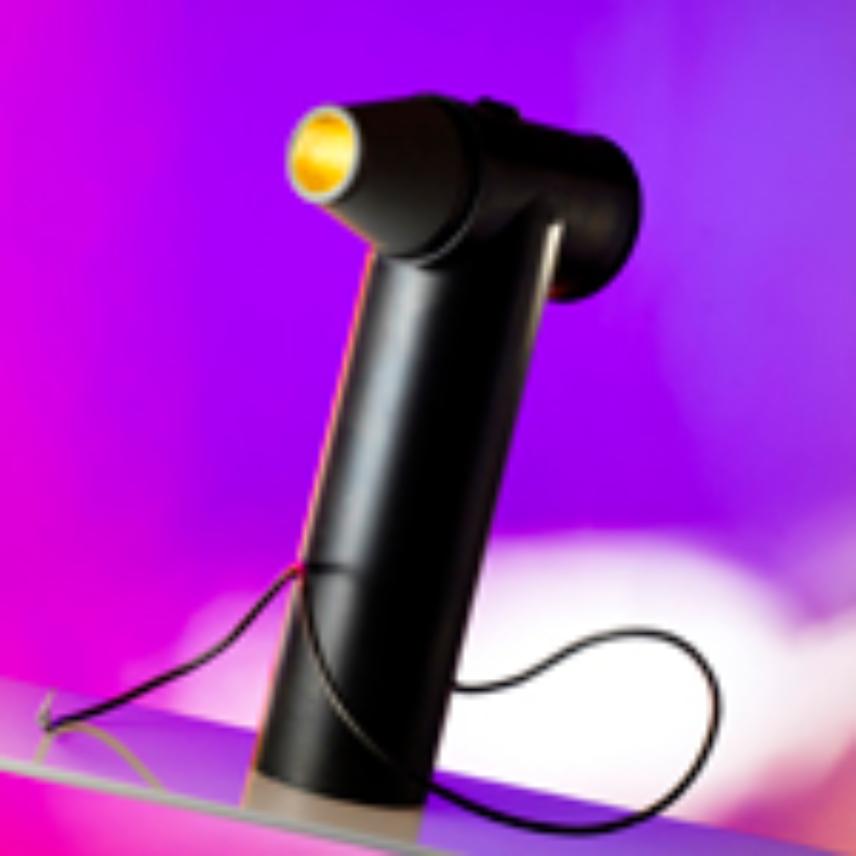

EUROMOLD coupling connector
- Nexans ref. : 804PB
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
Separable coupling connector (bolted type) for dual cable arrangement. It has been designed to be used with 480TB, 484TB and 489TB
separable tee connectors.
Technical characteristics
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
These products are part of our windlink® offer dedicated to windturbines.
Design

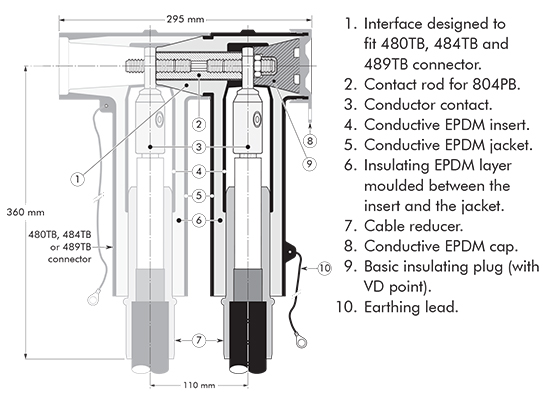

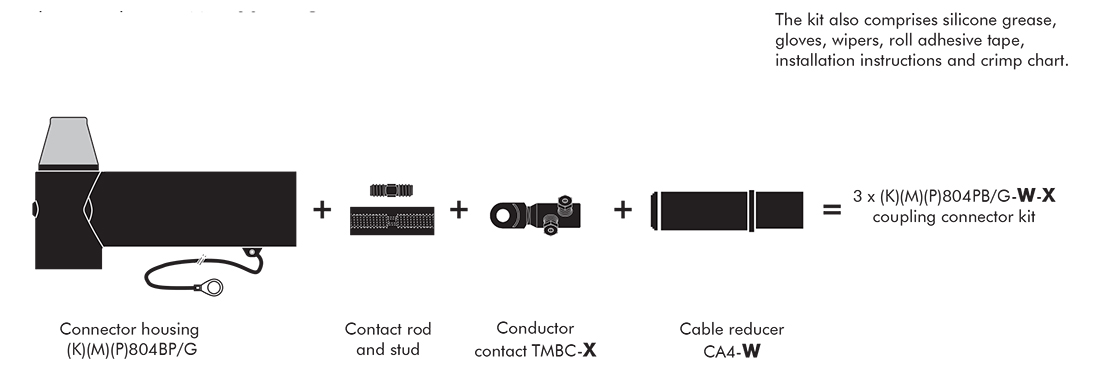

Kit contents
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Connector type
Male
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
50 ... 630 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Documentation
804PB catalogue page
pdf — 492.0 kB
804PB/G installation instruction
pdf — 1.1 MB
804PB test certificate
pdf — 240.6 kB
