800PB - Interface C - Coupling connector
800PB - Interface C - Coupling connector
Up to 42 kV - 630 A (1250 A)
EUROMOLD coupling connector
- Nexans ref. : 800PB
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
Separable coupling connector for dual cable arrangement. It has been designed to be used with 480TB, 484TB and 489TB separable tee connectors.
Can also be installed on any 8-series coupling connector for a multiple cable arrangement.
Technical characteristics
• A thick conductive EPDM jacket provides a total safe to touch screen.
• Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

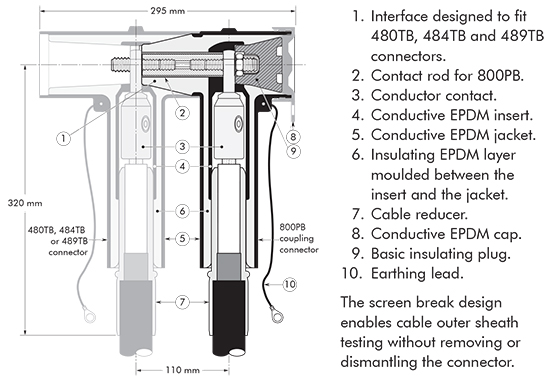

Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Connector type
Male
Conductor material
Copper or Aluminum
Technology
-
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
35 ... 300 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
-
Maximal partial discharge at 2Uo
42 pC
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
