400SFR-P - Interface B - Equipment Bushing
400SFR-P - Interface B - Equipment Bushing
Up to 24 kV - 400 A
EUROMOLD Equipment Bushing
- Nexans ref. : 400SFR-P
Description
Description
Application
For use in equipment insulated with SF6 gas.
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the
factory.
Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Connector shape
Bushing
Connector type
Male
Technology
Slip-0n

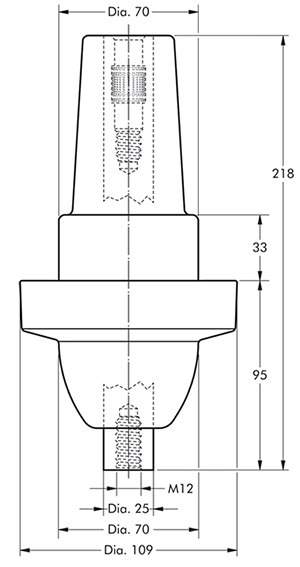

Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
0 ... 0 mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Usage characteristics
Usage characteristics
Interface
B (400 A)
Resources
Resources
Documentation
Catalogue page 400SFR-P
pdf — 220.0 kB
Separable screened connector systems
pdf — 2.7 MB
