NX600 Armoured

NX600 Armoured

NX600 Armoured

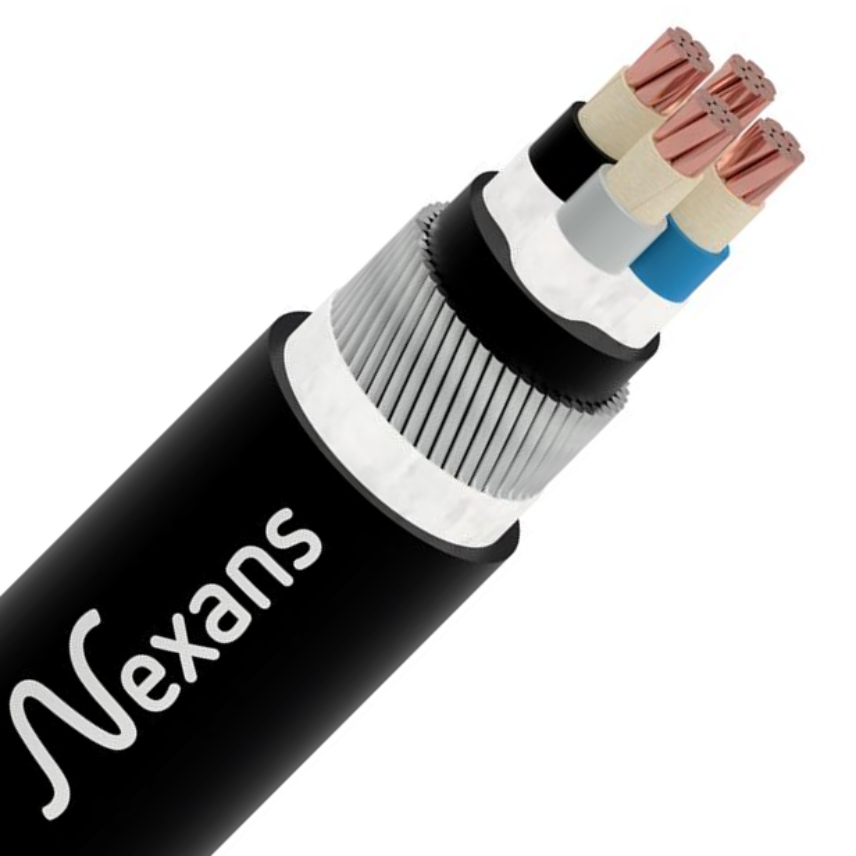

Fire-resistant, multi-core, multi-wire copper conductor power cables, halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire. The armored structure provides resistance against mechanical impacts. They maintain circuit integrity for 180 minutes under 950 °C and are also resistant to water and mechanical impacts that may occur during a fire. NX600 cables should meet the F2 & F120 requirements of BS 6387 & BS 8491 at 120 minutes for cables diameter over 20 mm

  • Resistance to fire, with mechanical shock and water jet
  • Additionally meeting the BS 8519 category 3 requirements

    Read more
    • Contact us

    Products

    Actions
    Filters

    • products

    NX600 3x10 mm2

    Nexans ref. 10539718 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Brown, black, grey
    • Inner sheath: None
    • Number of cores: 3
    • Approximate weight: 1110 kg/km
    • Conductor cross-section: 10 mm²
    • Nominal outer diameter: 24.0 mm
    • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
    • Permissible current rating clipped direct: 73 A
    • Permissible current rating in open air: 78 A
    • Permissible current rating when buried: 58 A
    • Permissible short circuit current conductor 1s: 1.4 kA
    • Voltage Drop: 4.0 V/A.km



    NX600 3x120 mm2

    Nexans ref. 10544560 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 5180 kg/km
    • Conductor cross-section: 120 mm²
    • Nominal outer diameter: 42.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
    • Permissible current rating clipped direct: 335 A
    • Permissible current rating in open air: 353 A
    • Permissible current rating when buried: 223 A
    • Permissible short circuit current conductor 1s: 17.2 kA
    • Voltage Drop: 0.37 V/A.km



    NX600 3x150 mm2

    Nexans ref. 10544561 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 6530 kg/km
    • Conductor cross-section: 150 mm²
    • Nominal outer diameter: 47.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
    • Permissible current rating clipped direct: 386 A
    • Permissible current rating in open air: 406 A
    • Permissible current rating when buried: 251 A
    • Permissible short circuit current conductor 1s: 21.4 kA
    • Voltage Drop: 0.3 V/A.km



    NX600 3x16 mm2

    Nexans ref. 10539719 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Brown, black, grey
    • Inner sheath: None
    • Number of cores: 3
    • Approximate weight: 1340 kg/km
    • Conductor cross-section: 16 mm²
    • Nominal outer diameter: 26.0 mm
    • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
    • Permissible current rating clipped direct: 94 A
    • Permissible current rating in open air: 99 A
    • Permissible current rating when buried: 75 A
    • Permissible short circuit current conductor 1s: 2.3 kA
    • Voltage Drop: 2.5 V/A.km



    NX600 3x185 mm2

    Nexans ref. 10544562 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 7880 kg/km
    • Conductor cross-section: 185 mm²
    • Nominal outer diameter: 51.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
    • Permissible current rating clipped direct: 441 A
    • Permissible current rating in open air: 463 A
    • Permissible current rating when buried: 281 A
    • Permissible short circuit current conductor 1s: 26.5 kA
    • Voltage Drop: 0.26 V/A.km



    NX600 3x240 mm2

    Nexans ref. 10544563 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 9880 kg/km
    • Conductor cross-section: 240 mm²
    • Nominal outer diameter: 57.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
    • Permissible current rating clipped direct: 520 A
    • Permissible current rating in open air: 546 A
    • Permissible current rating when buried: 324 A
    • Permissible short circuit current conductor 1s: 34.3 kA
    • Voltage Drop: 0.21 V/A.km



    NX600 3x25 mm2

    Nexans ref. 10544555 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Brown, black, grey
    • Inner sheath: None
    • Number of cores: 3
    • Approximate weight: 1910 kg/km
    • Conductor cross-section: 25 mm²
    • Nominal outer diameter: 29.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
    • Permissible current rating clipped direct: 124 A
    • Permissible current rating in open air: 131 A
    • Permissible current rating when buried: 96 A
    • Permissible short circuit current conductor 1s: 3.6 kA
    • Voltage Drop: 1.65 V/A.km



    NX600 3x300 mm2

    Nexans ref. 10544564 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 11810 kg/km
    • Conductor cross-section: 300 mm²
    • Nominal outer diameter: 62.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
    • Permissible current rating clipped direct: 599 A
    • Permissible current rating in open air: 628 A
    • Permissible current rating when buried: 365 A
    • Permissible short circuit current conductor 1s: 42.9 kA
    • Voltage Drop: 0.18 V/A.km



    NX600 3x35 mm2

    Nexans ref. 10544556 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Brown, black, grey
    • Inner sheath: None
    • Number of cores: 3
    • Approximate weight: 2310 kg/km
    • Conductor cross-section: 35 mm²
    • Nominal outer diameter: 31.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
    • Permissible current rating clipped direct: 154 A
    • Permissible current rating in open air: 162 A
    • Permissible current rating when buried: 115 A
    • Permissible short circuit current conductor 1s: 5 kA
    • Voltage Drop: 1.15 V/A.km



    NX600 3x4 mm2

    Nexans ref. 10539716 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Brown, black, grey
    • Inner sheath: None
    • Number of cores: 3
    • Approximate weight: 790 kg/km
    • Conductor cross-section: 4 mm²
    • Nominal outer diameter: 21.0 mm
    • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
    • Permissible current rating clipped direct: 42 A
    • Permissible current rating in open air: 44 A
    • Permissible current rating when buried: 36 A
    • Permissible short circuit current conductor 1s: 0.6 kA
    • Voltage Drop: 10.0 V/A.km



    NX600 3x400 mm2

    Nexans ref. 10544565 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 14770 kg/km
    • Conductor cross-section: 400 mm²
    • Nominal outer diameter: 69.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
    • Permissible current rating clipped direct: 673 A
    • Permissible current rating in open air: 728 A
    • Permissible current rating when buried: - A
    • Permissible short circuit current conductor 1s: 57.2 kA
    • Voltage Drop: 0.17 V/A.km



    NX600 3x50 mm2

    Nexans ref. 10544557 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 2400 kg/km
    • Conductor cross-section: 50 mm²
    • Nominal outer diameter: 30.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
    • Permissible current rating clipped direct: 187 A
    • Permissible current rating in open air: 197 A
    • Permissible current rating when buried: 135 A
    • Permissible short circuit current conductor 1s: 7.2 kA
    • Voltage Drop: 0.87 V/A.km



    NX600 3x6 mm2

    Nexans ref. 10539717 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Brown, black, grey
    • Inner sheath: None
    • Number of cores: 3
    • Approximate weight: 900 kg/km
    • Conductor cross-section: 6 mm²
    • Nominal outer diameter: 22.0 mm
    • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
    • Permissible current rating clipped direct: 53 A
    • Permissible current rating in open air: 56 A
    • Permissible current rating when buried: 44 A
    • Permissible short circuit current conductor 1s: 0.9 kA
    • Voltage Drop: 6.8 V/A.km



    NX600 3x70 mm2

    Nexans ref. 10544558 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 3150 kg/km
    • Conductor cross-section: 70 mm²
    • Nominal outer diameter: 34.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
    • Permissible current rating clipped direct: 238 A
    • Permissible current rating in open air: 251 A
    • Permissible current rating when buried: 167 A
    • Permissible short circuit current conductor 1s: 10 kA
    • Voltage Drop: 0.6 V/A.km



    NX600 3x95 mm2

    Nexans ref. 10544559 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 3
    • Approximate weight: 4270 kg/km
    • Conductor cross-section: 95 mm²
    • Nominal outer diameter: 39.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
    • Permissible current rating clipped direct: 289 A
    • Permissible current rating in open air: 304 A
    • Permissible current rating when buried: 197 A
    • Permissible short circuit current conductor 1s: 13.6 kA
    • Voltage Drop: 0.45 V/A.km



    NX600 4x16 mm2

    Nexans ref. 10539733 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Blue, brown, black, grey
    • Inner sheath: None
    • Number of cores: 4
    • Approximate weight: 1600 kg/km
    • Conductor cross-section: 16 mm²
    • Nominal outer diameter: 28.0 mm
    • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
    • Permissible current rating clipped direct: 94 A
    • Permissible current rating in open air: 99 A
    • Permissible current rating when buried: 75 A
    • Permissible short circuit current conductor 1s: 2.3 kA
    • Voltage Drop: 2.5 V/A.km



    NX600 4x4 mm2

    Nexans ref. 10539730 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Blue, brown, black, grey
    • Inner sheath: None
    • Number of cores: 4
    • Approximate weight: 910 kg/km
    • Conductor cross-section: 4 mm²
    • Nominal outer diameter: 22.0 mm
    • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
    • Permissible current rating clipped direct: 42 A
    • Permissible current rating in open air: 44 A
    • Permissible current rating when buried: 36 A
    • Permissible short circuit current conductor 1s: 0.6 kA
    • Voltage Drop: 10.0 V/A.km



    NX600 4x50 mm2

    Nexans ref. 10539736 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Sector-shaped stranded (SM)
    • Core identification: Blue, brown, black, grey
    • Inner sheath: LSZH
    • Number of cores: 4
    • Approximate weight: 3020 kg/km
    • Conductor cross-section: 50 mm²
    • Nominal outer diameter: 34.0 mm
    • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
    • Permissible current rating clipped direct: 187 A
    • Permissible current rating in open air: 197 A
    • Permissible current rating when buried: 135 A
    • Permissible short circuit current conductor 1s: 7.2 kA
    • Voltage Drop: 0.87 V/A.km



    NX600 4x6 mm2

    Nexans ref. 10539731 - Country ref. TR

    • Packaging: Drum (1000m)
    • Conductor shape: Circular stranded (RM)
    • Core identification: Blue, brown, black, grey
    • Inner sheath: None
    • Number of cores: 4
    • Approximate weight: 1060 kg/km
    • Conductor cross-section: 6 mm²
    • Nominal outer diameter: 24.0 mm
    • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
    • Permissible current rating clipped direct: 53 A
    • Permissible current rating in open air: 56 A
    • Permissible current rating when buried: 44 A
    • Permissible short circuit current conductor 1s: 0.9 kA
    • Voltage Drop: 6.8 V/A.km



    Description

    Description

    Standards

    • Product
      BS 7846; BS 8519 cat. 3
    • Test
      BS 6387 CWZ

    Application

    • Indoor applications where fire safety is a priority (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices etc.)
    • Systems that require 180 minutes of circuit integrity during fire conditions:

                       - Warning Systems (fire alarms, smoke detection/alarm devices)

                       - Smoke Ventilation Systems (tunnel fans)

                       - Emergency Exits (emergency lighting fixtures)

                       - Fire Intervention Systems (water pumps, automatic doors)

                       - Uninterruptible Energy Systems (escalators, elevators in subways)

    Construction

    1. Conductor: Copper
    2. Fire barrier: Mica tape
    3. Insulation: XLPE
    4. Inner layer: Glass-fiber tape
    5. Bedding: LSZH
    6. Armour: Single layer of galvanized steel wires
    7. Outer layer: Glass-fiber tape
    8. Outer sheath: LSZH





    Characteristics

    Characteristics

    Construction characteristics

    Construction characteristics

    Conductor material
    Copper
    Armour type
    Single layer of galvanized steel wires
    Outer sheath
    LSZH
    Insulation
    XLPE + Mica tape
    Sheath colour
    Black
    Conductor flexibility
    Class 2
    Halogen free
    Yes
    Type of conductor
    Circular, stranded, class 2

    Dimensional characteristics

    Dimensional characteristics

    Average insulation thickness
    - mm
    Conductor diameter
    - mm
    Inner sheath thickness
    - mm
    Nominal outer sheath thickness
    - mm

    Electrical characteristics

    Electrical characteristics

    Rated Voltage Uo/U (Um)
    0,6/1 kV

    Mechanical characteristics

    Mechanical characteristics

    Mechanical resistance to impacts
    Good

    Usage characteristics

    Usage characteristics

    操作温度范围
    -20 ... 60 °C
    Max. conductor temperature in service
    90 °C
    Fire resistant
    BS 8491 - 120 min
    Smoke density
    IEC 61034-1-2
    Gases corrosivity
    IEC 60754-2
    Flame retardant
    IEC 60332-3-24
    Bending factor when laying
    8 (xD)
    Short-circuit max. conductor temperature
    250 °C

    Resources

    Resources

    Selling & delivery Information

    Marking
    ELECTRIC CABLE 600/1000 V BS 7846-F120 NEXANS i NX600 Number of cores x cross section LPCB 946d/01 BASEC ''YEAR''

    Close

    Our websites

    Select your country to find our products and solutions

    Contact us

    Topics on which you wish to get more informations:

    Required fields*

    Please check your entry and try again.

    An email address must contain a single @

    Personal data protector

    You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

    Thank you!

    Thanks for contacting us. We will be in touch with you shortly.

    Error

    An error occurred. Please try again.

    Close

    Contact us

    Required fields*

    Please check your entry and try again.

    An email address must contain a single @

    Personal data protector

    You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

    Thank you!

    Thanks for contacting us. We will be in touch with you shortly.

    Error

    An error occurred. Please try again.

    Close
