909PB - Interface F - Coupling connector
909PB - Interface F - Coupling connector
Up to 42 kV - 2500 A
EUROMOLD tee connector
- Nexans ref. : 909PB
Description
Description
Standards
-
TestHD 629.1 S2
Application
Separable tee shape connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.
Technical characteristics

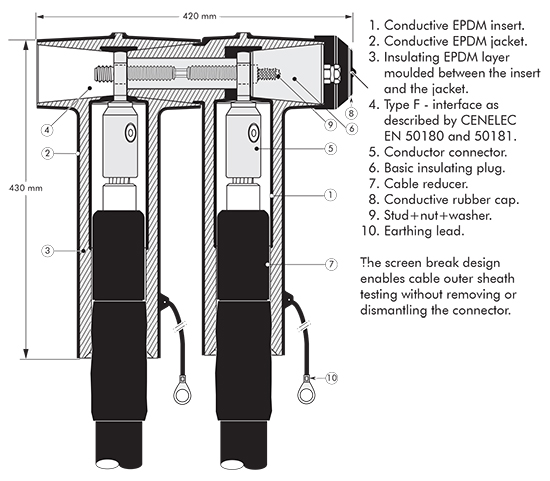

- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design

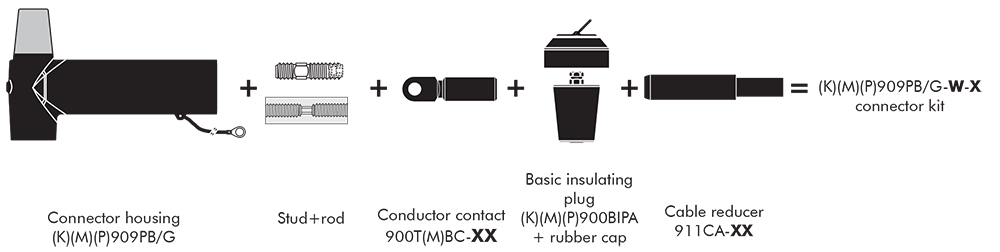

Kit contents
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Connector type
Male
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
240 ... 1200 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
20.8/36 kV
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV
Maximal partial discharge at 2Uo
5 pC
Usage characteristics
Usage characteristics
Interface
Interface F (2500 A)
