676LRA - Interface D - Tee connector
676LRA - Interface D - Tee connector
Up to 24 kV - 1250 A
EUROMOLD tee connector
- Nexans ref. : 676LRA
Description
Description
Application
Separable tee connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...). Also connects cable to cable, using the appropriate mating part.
Technical characteristics
The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel. Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

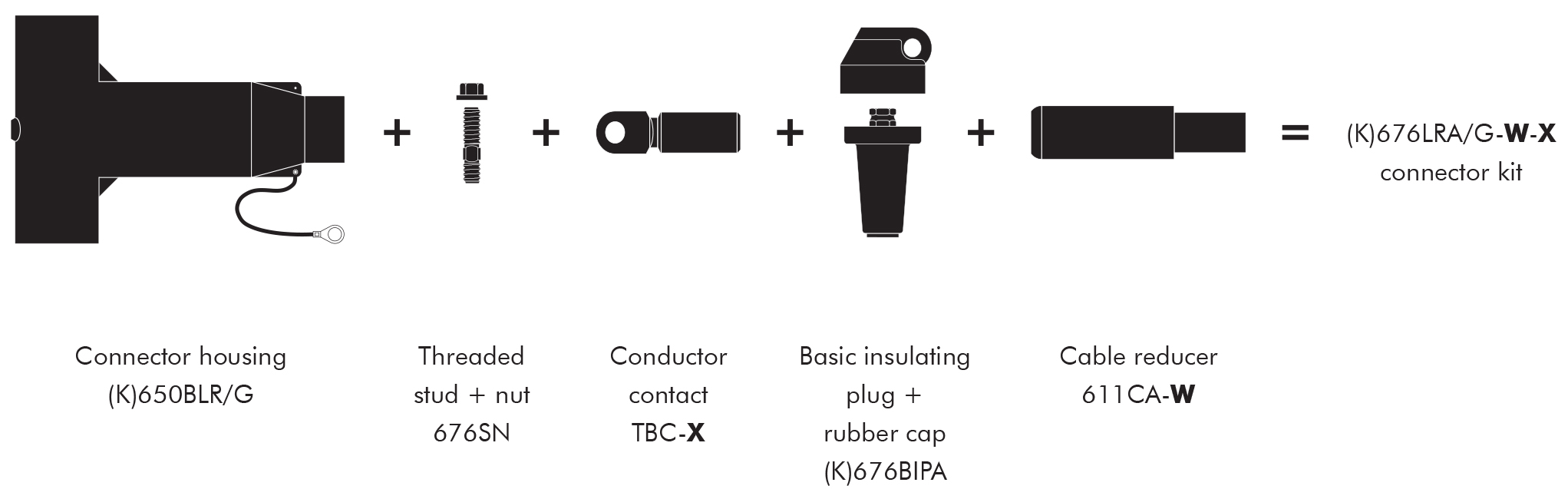

Kit contents
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
-
Conductor shape
-
Technology
Slip-0n
Type of conductor
-
Dimensional characteristics
Dimensional characteristics
Conductor cross section in mm²
-
Electrical characteristics
Electrical characteristics
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12.7 / 22 (24) kV
Usage characteristics
Usage characteristics
Interface
D (1250 A)
