670AR-2 - Interface D - Equipment bushing
670AR-2 - Interface D - Equipment bushing
Up to 24 kV - 1250 A
EUROMOLD equipment bushing
- Nexans ref. : 670AR-2
Description
Description
For use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors...

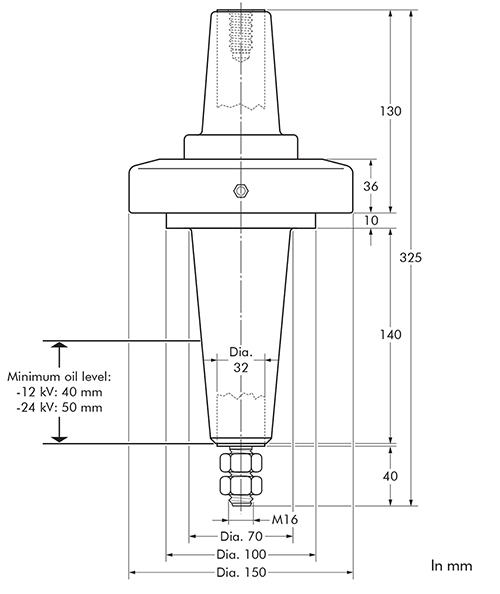

Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
-
Conductor shape
-
Technology
-
Type of conductor
-
Dimensional characteristics
Dimensional characteristics
Conductor cross section in mm²
-
Electrical characteristics
Electrical characteristics
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12.7 / 22 (24) kV
Usage characteristics
Usage characteristics
Interface
-
