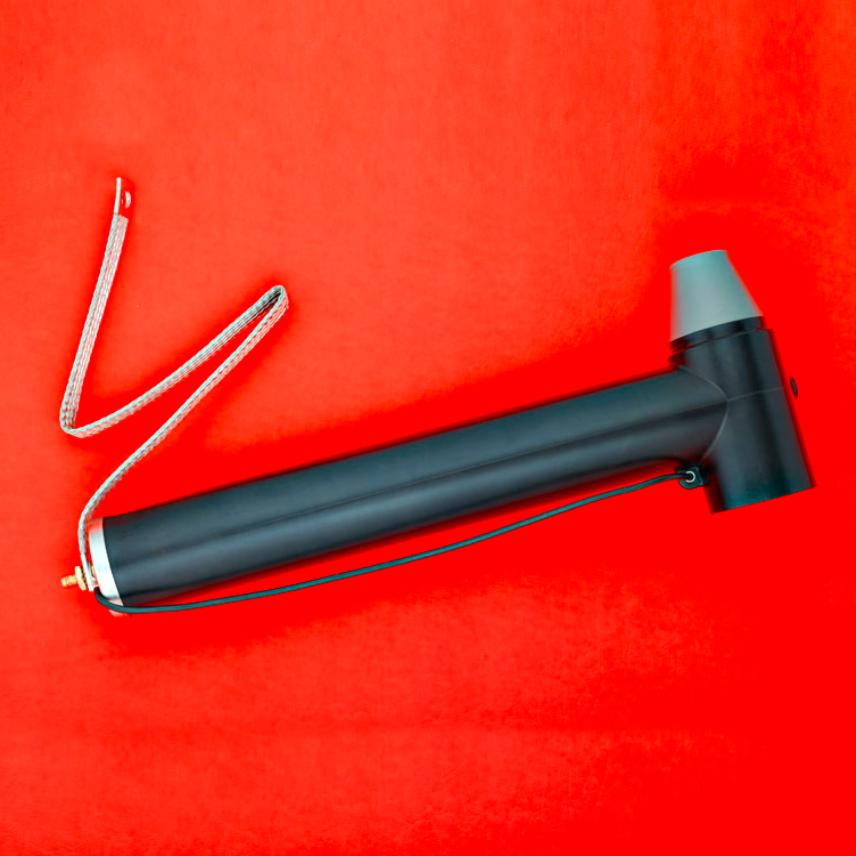

800SA - Interface C - Surge arrester
800SA - Interface C - Surge arrester
Up to 42 kV
EUROMOLD surge arrester
- Nexans ref. : 800SA
Description
Description
Standards
-
TestCENELEC HD 629.1
-
InternationalIEC 60099-4
Application
Surge arrester designed to protect 12, 24, 36 and 42 kV class components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching. It has been designed to be used with the 480TB, 484TB and 489TB separable tee connector.

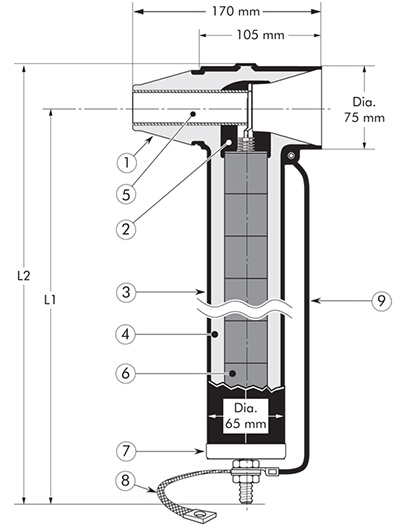

Technical characteristics
- This surge arrester is a metaloxide varistor surge arrester in an elbow configuration.
- Each arrester is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.
These products are part of our windlink® offer dedicated to windturbines.
Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Connector type
Male
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
0 ... 0 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
0 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Documentation
800SA catalogue page
pdf — 288.8 kB
800SA installation instruction
pdf — 337.3 kB
