400LR - Interface B - Elbow connector
400LR - Interface B - Elbow connector
Up to 36 kV - 400 A
EUROMOLD Elbow connector
- Nexans ref. : 400LR
Description
Description
Application

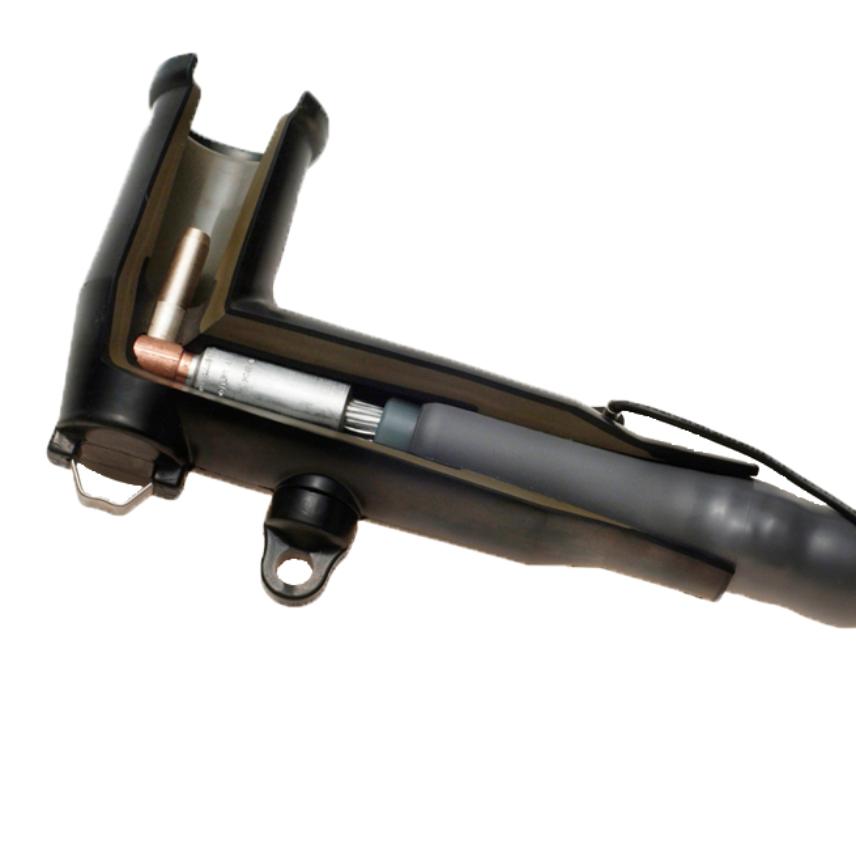

Separable elbow connector (plug-in type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

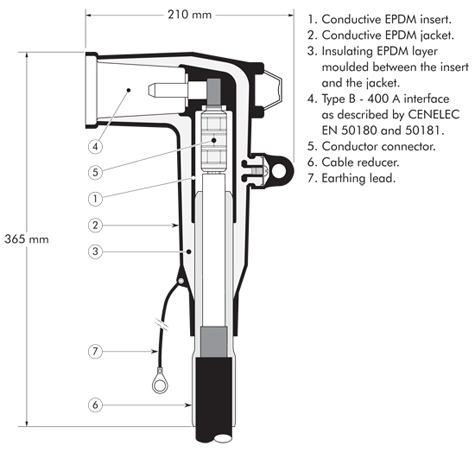

Design

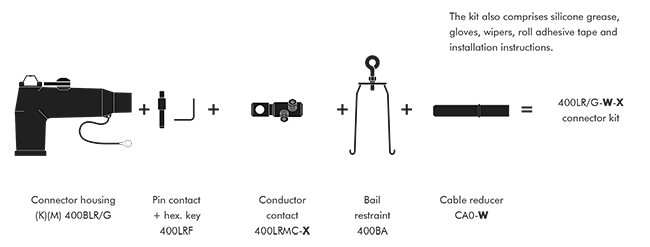

Kit contents
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Connector shape
Elbow
Connector type
Outer cone
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
25 ... 240 mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
81 kV
Impulse voltage
170 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
18 / 30 (36) kV
Usage characteristics
Usage characteristics
Interface
B (400 A)
Resources
Resources
Documentation
400LR catalogue page
pdf — 498.8 kB
Separable screened connector systems
pdf — 2.7 MB
400LR installation instruction
pdf — 519.9 kB
