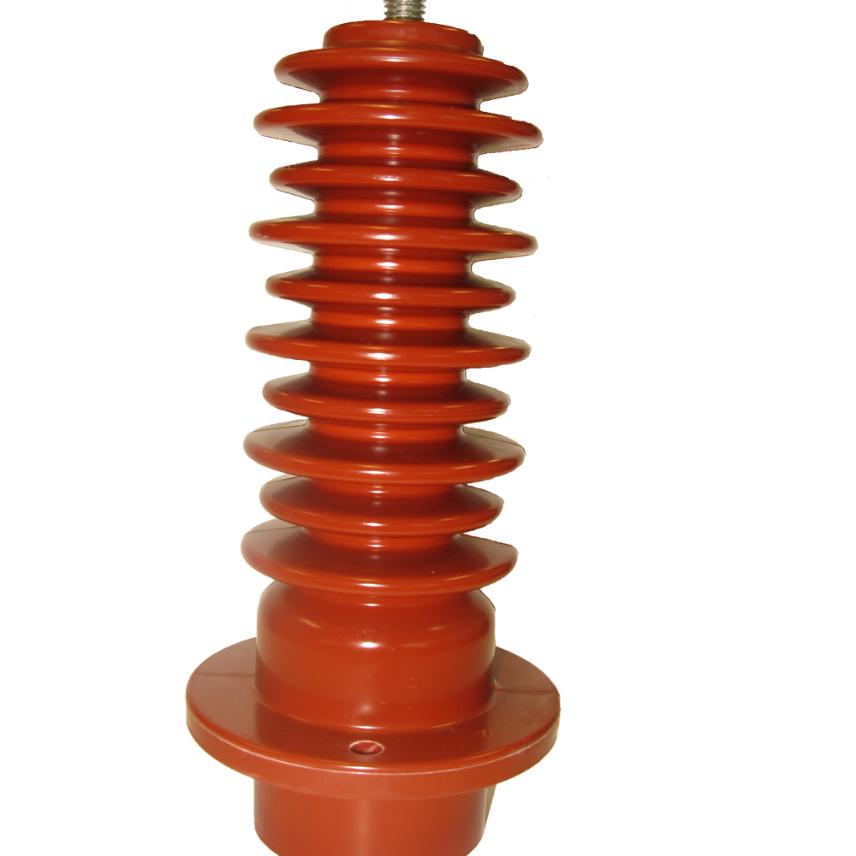

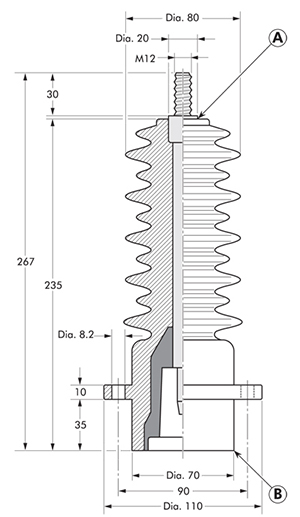

PITO-E - Interface A - Plug-in termination
PITO-E - Interface A - Plug-in termination
Up to 24 kV - 250 A
EUROMOLD plug-in termination
- Nexans ref. : 8484
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
Application
- Separable termination designed to connect overhead lines or bus bars to equipment.
- Is suitable for indoor and outdoor use for medium polluted atmosphere.
Technical characteristics
Each plug-in termination is tested for AC withstand prior to leaving the factory.
Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Bushing
Connector type
-
Conductor material
Bare copper
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
0 ... 0 mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Usage characteristics
Usage characteristics
Interface
A (250 A)
Resources
Resources
Documentation
PITO-E catalogue page
pdf — 190.6 kB
Separable screened connector systems
pdf — 2.7 MB
PITO-E installation instruction
pdf — 214.6 kB
