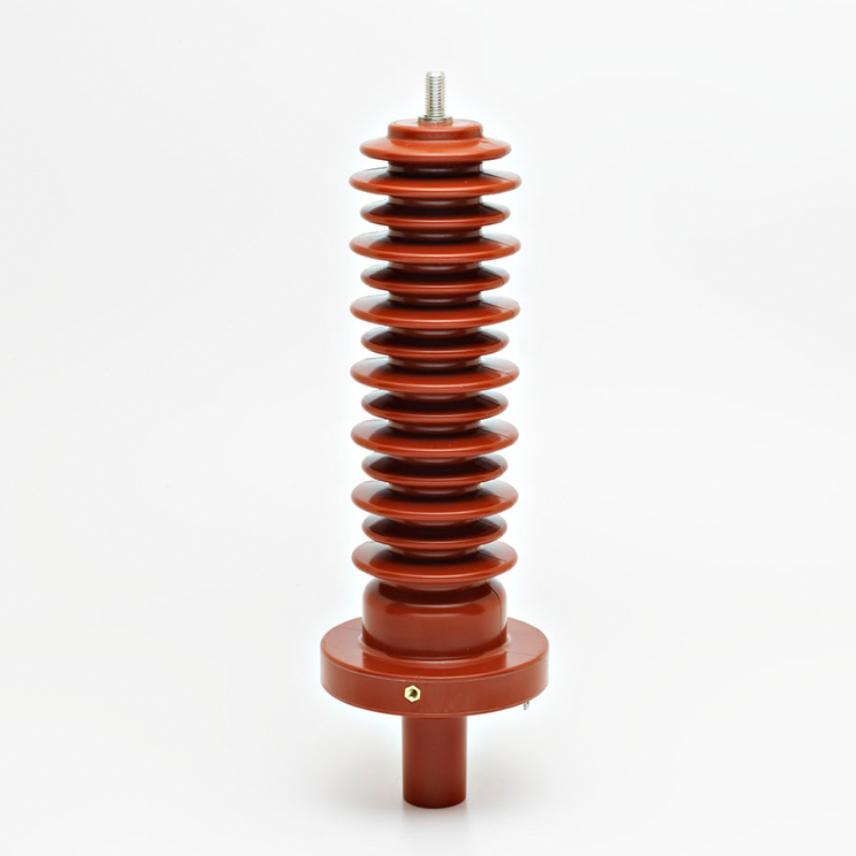

180A-24P-O - Interface A - In-air bushing
180A-24P-O - Interface A - In-air bushing
Up to 24 kV - 250 A
EUROMOLD In-air bushing
- Nexans ref. : 65181
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
Application
For use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Bushing
Connector type
-
Conductor material
Bare copper
Technology
-

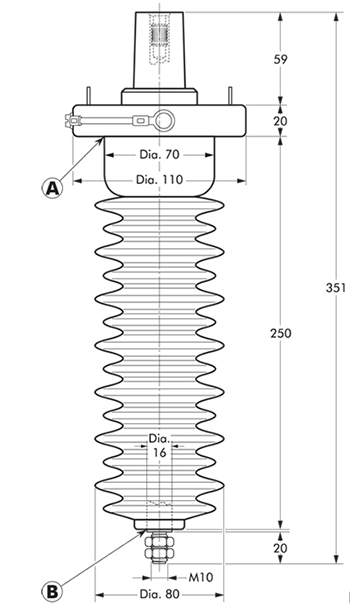

Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
16 ... 95 mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
5 pC
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Usage characteristics
Usage characteristics
Interface
A (250 A)
Resources
Resources
Documentation
Catalogue page 180A-24P-O
pdf — 331.5 kB
Separable screened connector systems
pdf — 2.7 MB
