Heat-Shrinkable terminations
Heat-Shrinkable terminations

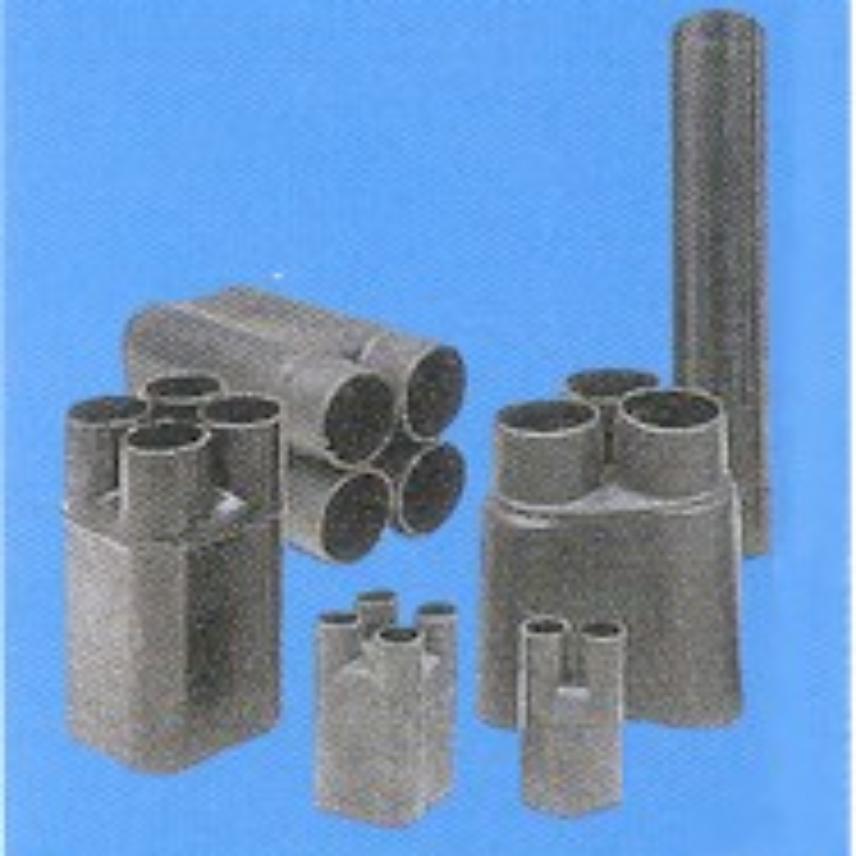

Heat-shrinkable terminations for LV multi-core cables
Read moreTERM 3P TR 110/47 - 48/20 MM
Nexans ref.
- Packaging: Box (10Unit)
- Internal diameter of finger before recovery: 48 mm
- Internal diameter of finger after free recovery: 20 mm
TERM. 3P TR 60/22 - 24/8 MM
Nexans ref.
- Packaging: Box (10Unit)
- Internal diameter of finger before recovery: 24 mm
- Internal diameter of finger after free recovery: 8 mm
TERM. 3P TR 80/33 - 36/16 MM
Nexans ref.
- Packaging: Box (10Unit)
- Internal diameter of finger before recovery: 36 mm
- Internal diameter of finger after free recovery: 16 mm
TERM. 4P TR 38/14 - 11/4 MM
Nexans ref.
- Packaging: Box (10Unit)
- Internal diameter of finger before recovery: 11 mm
- Internal diameter of finger after free recovery: 4 mm
TERM. 4P TR 55/22 - 20/9 MM
Nexans ref.
- Packaging: Box (10Unit)
- Internal diameter of finger before recovery: 20 mm
- Internal diameter of finger after free recovery: 9 mm
TERM. 4P TR 72/22 - 25/9 MM
Nexans ref.
- Packaging: Box (10Unit)
- Internal diameter of finger before recovery: 25 mm
- Internal diameter of finger after free recovery: 9 mm
Description
Description
Standards
-
ProductEN 50393
Heat-shrinkable terminations are suitable for PVC, XLPE, and PILC insulation, Al or Cu, armoured or unarmoured LV (1 kV) cables.
The system provides good sealing and protection of indoor or outdoor cable termination.
Break-out and core protective tubes are made of excellent polyolefine.
Earthing kit including underarmour ring, metallic clamp and tinned copper braid with lug for armoured cables, are supplied with the termination kit.
Al or Cu specific section terminal cable lugs are supplied on request.
