Heatshrinkable joint GTS3.1 W
Heatshrinkable joint GTS3.1 W

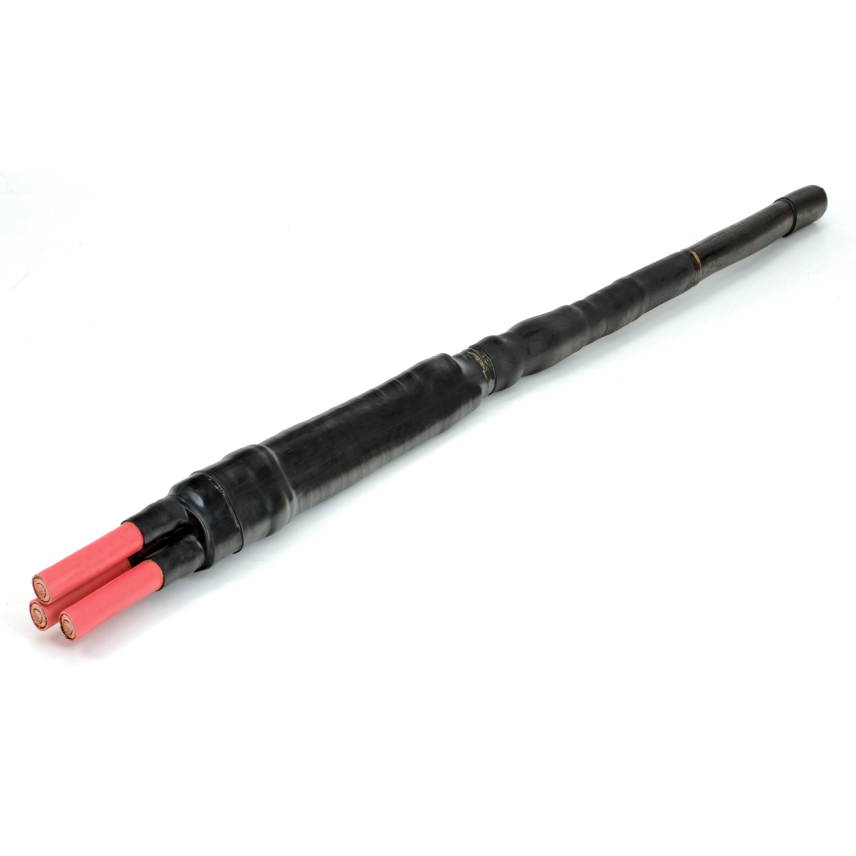

Heat-shrinkable MV transition joints for 3x single core polymeric to three core polymeric cables with or without armor
Up to 20,8/36 (42) kv
17GTS3.1.95W
Nexans ref. 17GTS3.1.95W
- Conductor cross-section, range: 25 ... 95 mm²
- Length: 1200 mm
- Maximum operating voltage: 17 kV
17GTS3.1.240W
Nexans ref. 17GTS3.1.240W
- Conductor cross-section, range: 95 ... 240 mm²
- Length: 1400 mm
- Maximum operating voltage: 17 kV
24GTS3.1.50W
Nexans ref. 24GTS3.1.50W
- Conductor cross-section, range: 25 ... 50 mm²
- Length: 1400 mm
- Maximum operating voltage: 24 kV
36GTS3.1.95W
Nexans ref. 36GTS3.1.95W
- Conductor cross-section, range: 25 ... 95 mm²
- Length: 1400 mm
- Maximum operating voltage: 36 kV
42GTS3.1.50W
Nexans ref. 42GTS3.1.50W
- Conductor cross-section, range: 25 ... 95 mm²
- Length: 1400 mm
- Maximum operating voltage: 42 kV
17GTS3.1.400W
Nexans ref. 17GTS3.1.400W
- Conductor cross-section, range: 240 ... 400 mm²
- Length: 1600 mm
- Maximum operating voltage: 17 kV
24GTS3.1.240W
Nexans ref. 24GTS3.1.240W
- Conductor cross-section, range: 50 ... 240 mm²
- Length: 1600 mm
- Maximum operating voltage: 24 kV
36GTS3.1.240W
Nexans ref. 36GTS3.1.240W
- Conductor cross-section, range: 70 ... 240 mm²
- Length: 1600 mm
- Maximum operating voltage: 36 kV
42GTS3.1.240W
Nexans ref. 42GTS3.1.240W
- Conductor cross-section, range: 70 ... 240 mm²
- Length: 1600 mm
- Maximum operating voltage: 42 kV
24GTS3.1.400W
Nexans ref. 24GTS3.1.400W
- Conductor cross-section, range: 150 ... 400 mm²
- Length: 1800 mm
- Maximum operating voltage: 24 kV
36GTS3.1.400W
Nexans ref. 36GTS3.1.400W
- Conductor cross-section, range: 185 ... 400 mm²
- Length: 1800 mm
- Maximum operating voltage: 36 kV
42GTS3.1.400W
Nexans ref. 42GTS3.1.400W
- Conductor cross-section, range: 185 ... 400 mm²
- Length: 1800 mm
- Maximum operating voltage: 42 kV
Description
Description
Standards
-
InternationalHD 629.1 S2; IEC 60502-4
Application
GTS3.1 W joints are designed to connect armored or unarmored 3x core cables to 3x single core.
Technical characteristics
The cables are prepared and aligned.
Stress grading mastic covers the screen cut area and the connector, that can be either crimp or mechanical type.
Stress control and dual wall screened insulating tubing complete the joint body.
screening is restored on each core.
The outer protection is restored with adhesive lined medium or heavy wall tubing, and an additional insulating breakout seals the three single core cable side.
