Heatshrinkable joint 1GLT4 GR

HEAT-SHRINKABLE LOW VOLTAGE STRAIGHT THROUGH JOINTS
Up to 0,6/1 (1,2) kV

Datasheet PDF

Products

products

Description

Standards

Product

EN 50393

Application

The 1GLT4 GR 1 - 7 low voltage heat-shrinkable straight joint kits are designed for plastic insulated cables in full accordance with DIN47640.
The kits are designed to accommodate the din specific mechanical shear bolt connectors (GPH D-Series), and are fully type tested acc. to EN50393.

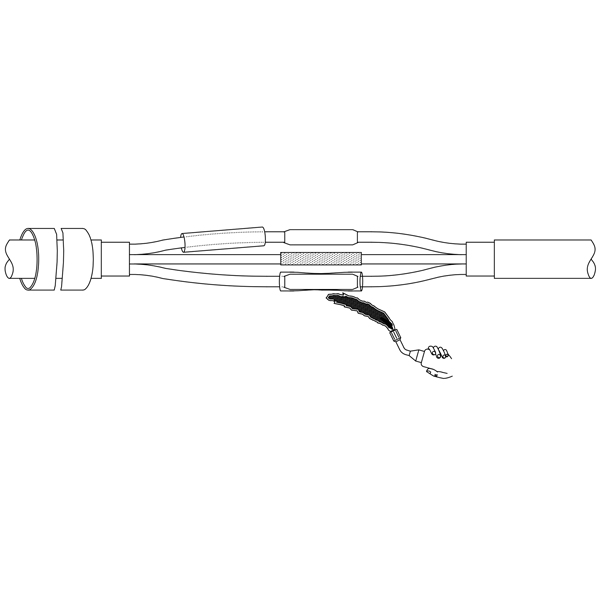

GT4 heavy wall tubing w. adhesive is used to create the joint.
The tube is used to insulate the core/connector as well as rebuilding the outer jacket.

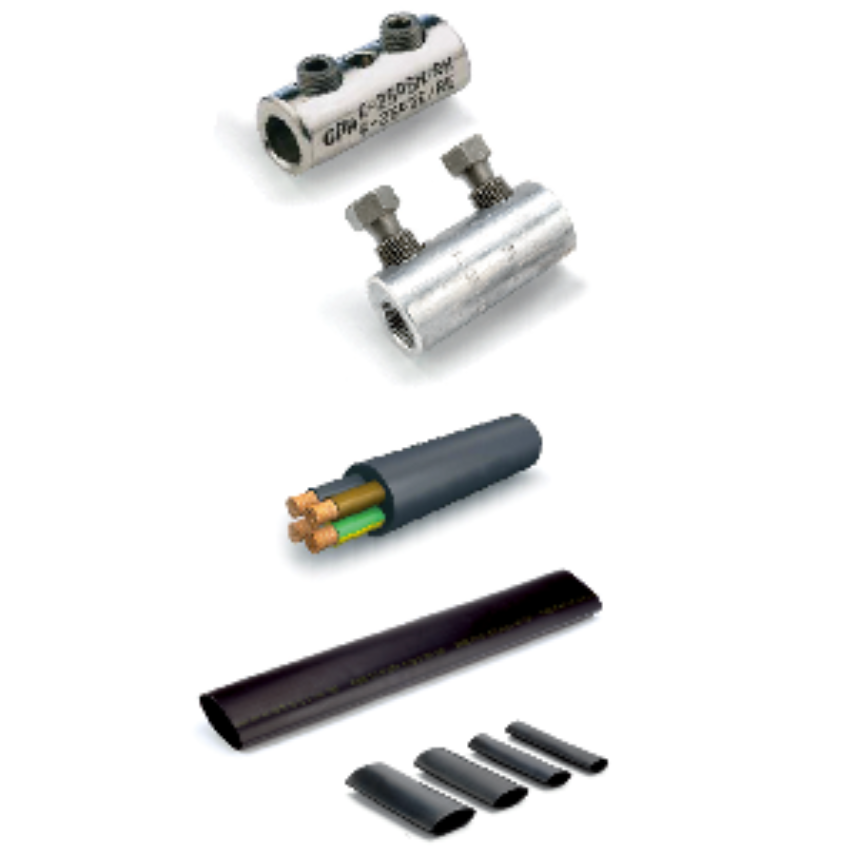

Kit contents

4 x GT4 heavy wall tubing w. adhesive for core insulation
4 x GPH D series mechanical shear bolt connectors (only “C” series)
1 x GT4 heavy wall tubing w. adhesive to rebuild the outer sheath

Meets Specifications:

DIN47640

1GLT4 Other options

*With code C the kits are supplied w.mechanical connectors

Characteristics

Electrical characteristics

Maximum operating voltage

1 kV
