Heat shrink MV Straight Joint JTS1 W-CS

Application

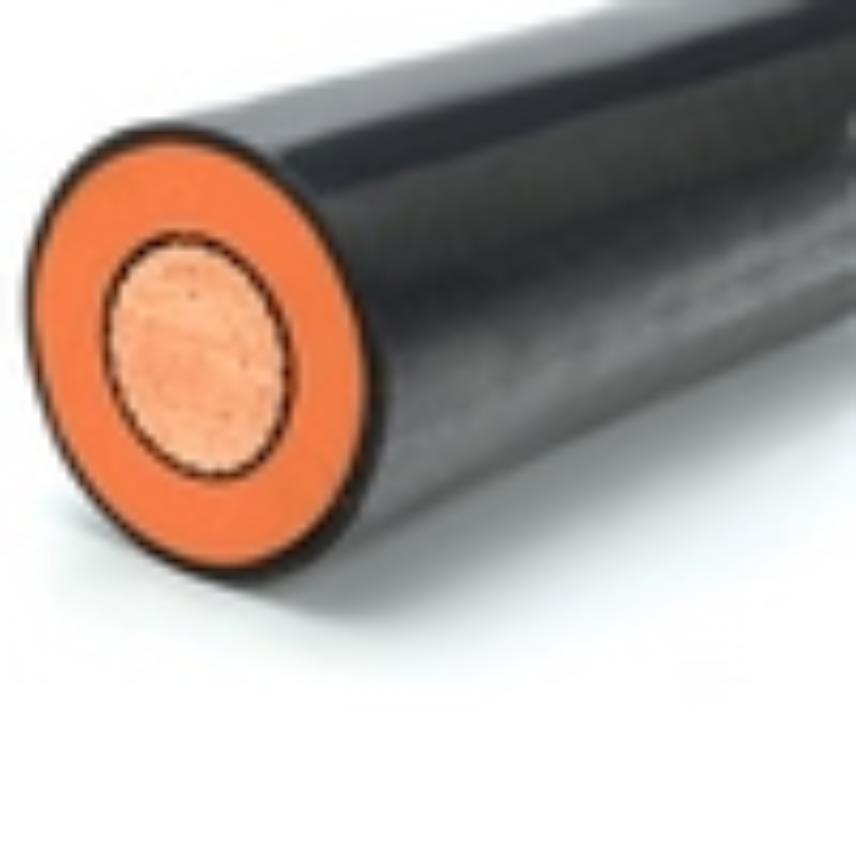

JTS1 W heat-shrink straight joints are designed for unarmoured, plastic insulated cables with Cu wire or Cu/ AI tape screen, to accommodate either crimped or mechanical connectors.

Technical characteristics

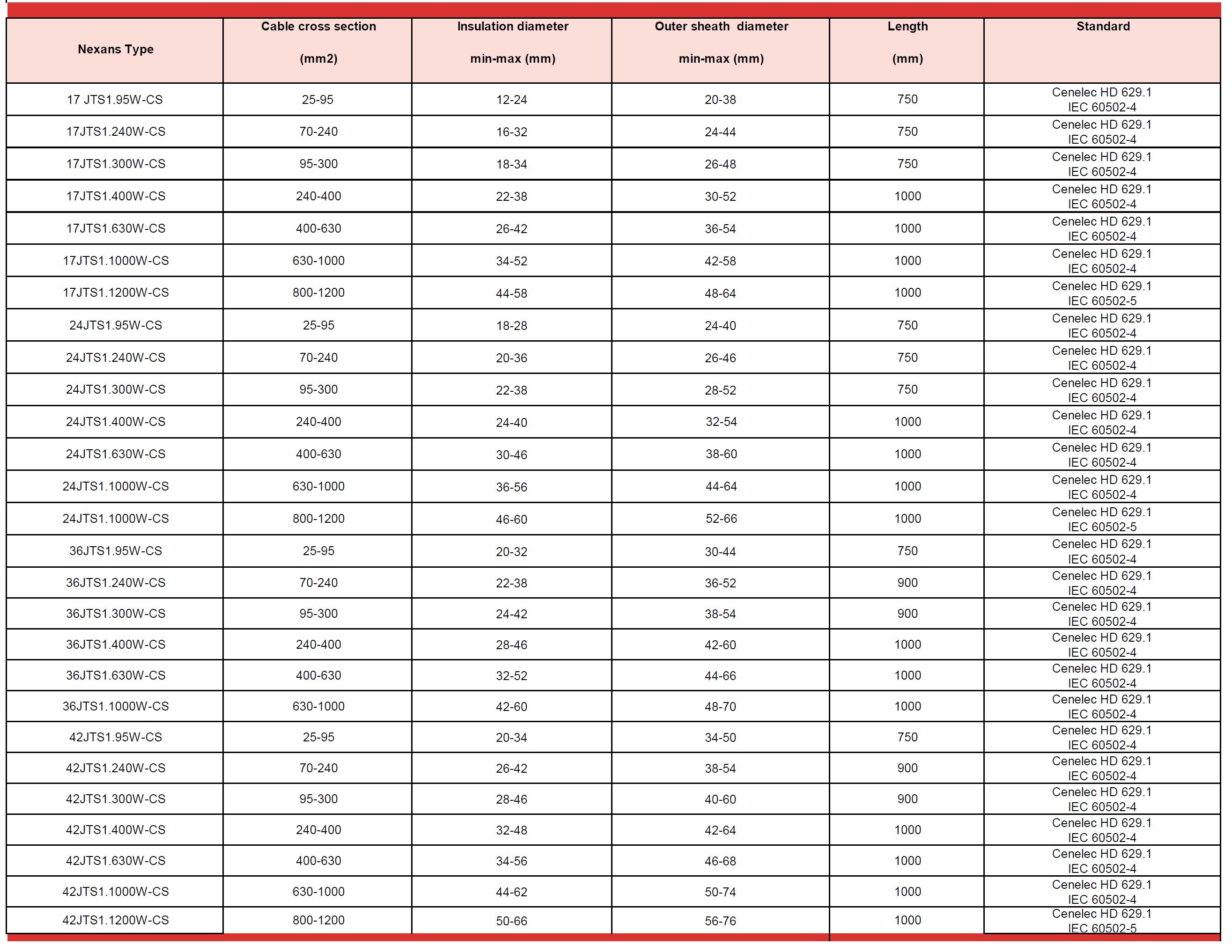

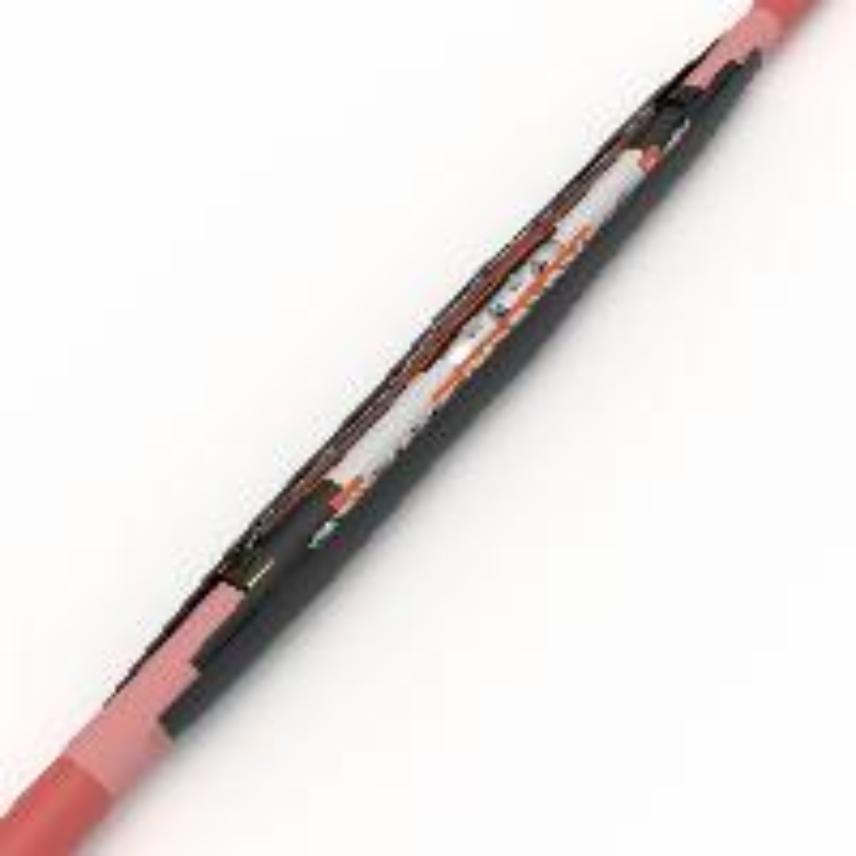

JTS is the NEW high performance, compact and easy to install joint. A single body with all the electrical functions integrated!

Where as , 36-42JTS is double bodies with all the electrical functions integrated!

The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and upto 400mm 2. From 400 up to 1200mm2 a double dual layer tube is utilized. “stress control field + insulating” nested in a coextruded high voltage applications up to 42kV.

A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field and of the voltage gradient in the connector area.

The electrical continuity of the screen is ensured by a tinned copper stocking with roll constant force springs in case of copper tape screen (CS type) or with a standard tinned copper tape plus an earthing ferrule in case of copper wire screen (W type). The outer sheath is restored with heavy wall adhesive lined tubing.
