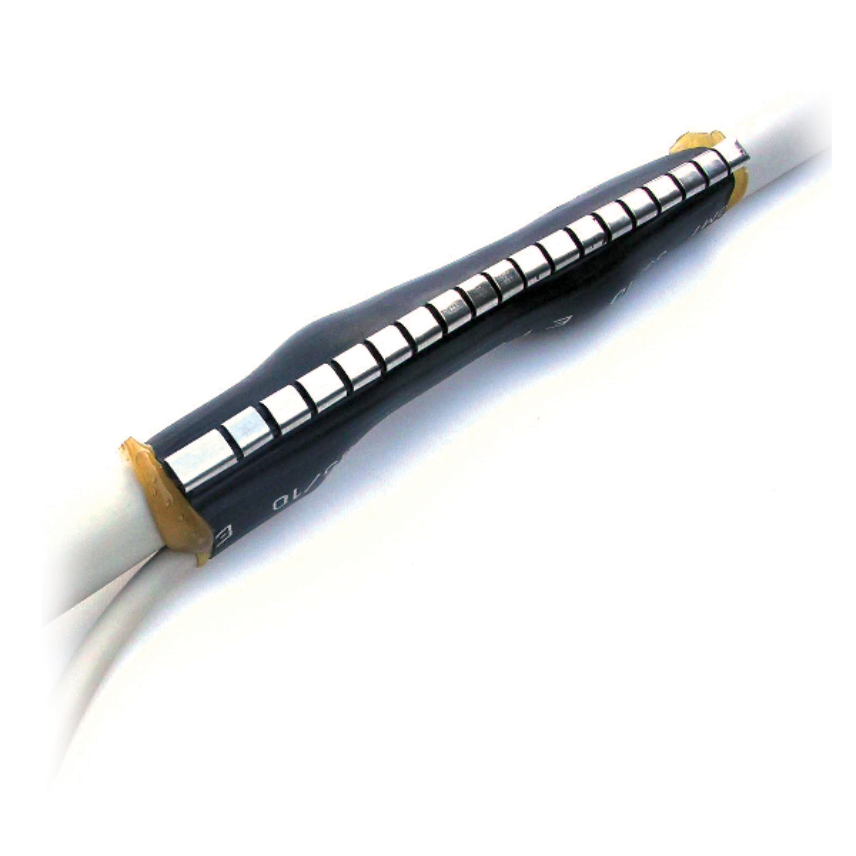

Heatshrinkable branch joint 1GDT
Heatshrinkable branch joint 1GDT
HEAT-SHRINKABLE LOW VOLTAGE BRANCH JOINTS
Up to 0,6/1 (1,2) kV
Description
Description
Standards
-
InternationalEN 50393
Application

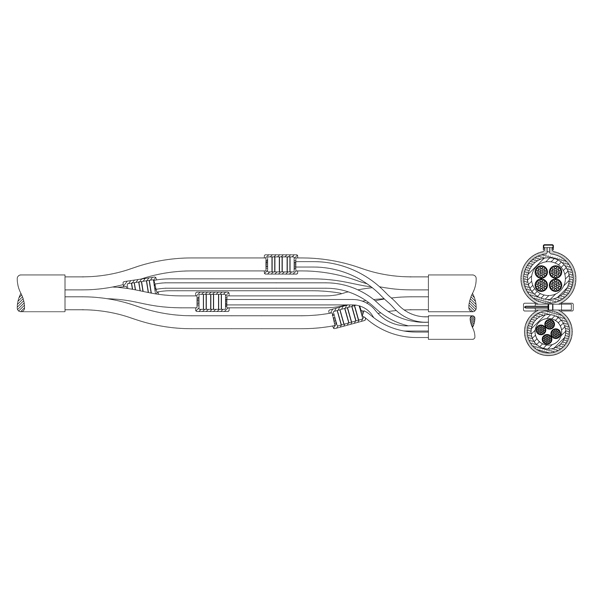

The 1GDT heat-shrinkable low voltage branch joint kits are designed to accommodate 4 core plastic cables, with or without armor.
Kit contents
- Inner core/connector protection tubes w. adhesive
- Outer heat-shrinkable wraparound sleeve with or without reinforcement
- For armored cable: armor continuity kit supplied
1GDT Other options
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Conductor section of the main cable, range
- mm²
Conductor cross-section, range
2.5 ... 25 mm²
Electrical characteristics
Electrical characteristics
Maximum operating voltage
1 kV
