Cast resin branch joint 1GRD / 1GRT
Cast resin branch joint 1GRD / 1GRT
CAST RESIN BRANCH/TEE JOINTS
Up to 0,6/1 (1,2) kV
1GRD1
Nexans ref.
- Resin type: ISBE
- Diameter main cable: 8 ... 26 mm
- Diameter branch cable: 8 ... 26 mm
- Length: 190 mm
1GRD2
Nexans ref.
- Resin type: ISBE
- Diameter main cable: 23 ... 39 mm
- Diameter branch cable: 14 ... 32 mm
- Length: 275 mm
1GRT1
Nexans ref.
- Resin type: ISBE
- Diameter main cable: 14 ... 39 mm
- Diameter branch cable: 8 ... 32 mm
- Length: 290 mm
1GRD3
Nexans ref.
- Resin type: ISBP
- Diameter main cable: 14 ... 45 mm
- Diameter branch cable: 14 ... 45 mm
- Length: 300 mm
1GRD4
Nexans ref.
- Resin type: ISBP
- Diameter main cable: 15 ... 50 mm
- Diameter branch cable: 15 ... 50 mm
- Length: 435 mm
1GRD5
Nexans ref.
- Resin type: ISBP
- Diameter main cable: 20 ... 60 mm
- Diameter branch cable: 20 ... 60 mm
- Length: 675 mm
Description
Description
Standards
-
ProductCENELEC HD 623; EN 50393
Application

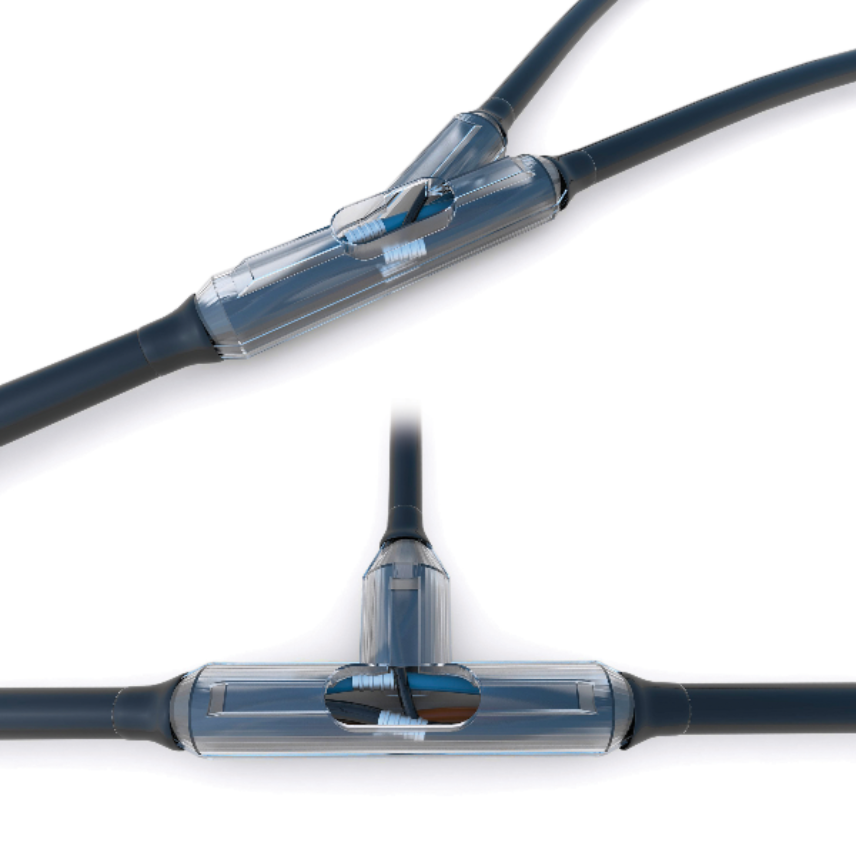

The 1GRD/1GRT cast resin branch/tee joints are designed to accommodate multi core low voltage cables with PVC or XLPE insulation.
The joints can be filled with either PUR or EPOXY resin.
The joints can be energized immediately after installation.
Joints can also accommodate armored cables with the addition of an armor kit.
Kit contents
- Injection molded shells
- 2 chamber resin bag / or in cans
- Sealing tape
- Instruction manual
- (Armor kit ACK for cables w. armor)
1GRD / 1GRT Other options
##image:94266:center##
##image:94265:center##
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Maximum operating voltage
1 kV
