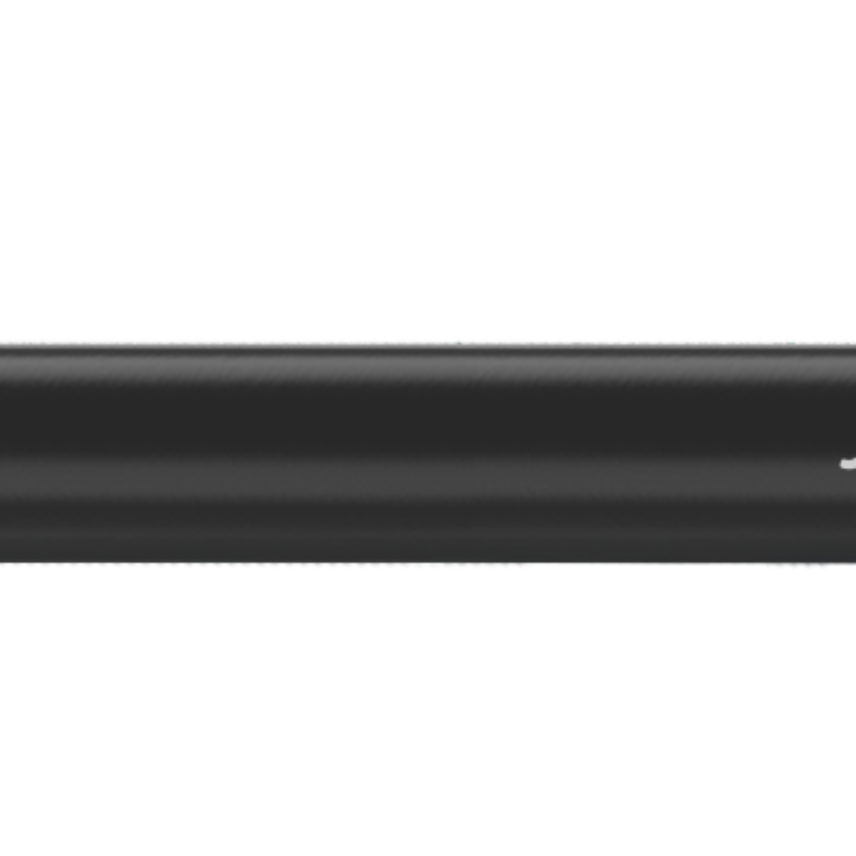

H07ZZ-F 1X95 ALSECURE FLEX GL3000

Application

This cable is particularly recommended for all installations in which safety conditions require the use of a flexible and low smoke cable :

• wiring for industrial installations,
• wiring for road and rail tunnels,
• wiring for industrial warehouses,
• wiring for rooms containing electrical, electronic or computer equipment,
• wiring for central control rooms,
• wiring for airports stations, port facilities and ships
• wiring for hospitals,
• wiring for buildings open to the public,
• wiring for house and tall buildings.

Nota

Max continuous operating conductor temperature in normal use :

+60°C   ( in every case of mobile installation)

+90°C   ( fixed protected installation )

+250°C ( in short circuit )

Permissible current rating is measured for an ambient temperature of 30°C and a
maximum operating and conductor temperature of 90°C according IEE 4F2A table. For
other temperature please refer to correction factors .
