Aerospace infrastructures

Nexans is a long-term partner of the aerospace adventure, by providing solutions for the safe transfer of liquid propellants.

Cryogenic transfer systems for spaceports infrastructures

Transfering liquid propellants, safely.

Nexans is a long-term partner of the aerospace adventure, by providing solutions for the safe transfer of liquid propellants.

Nexans vacuum insulated piping solutions allow safe and reliable transfer of cryogenic fluids and chemicals over hundreds of meters, from storage tanks to launch stations. Commonly applied to LH2 and LOX, they are also suitable with liquefied methane and possibly kerosene to offer compatibility with all technologies of liquid-propelled rockets.

Nexans also equips aerospace facilities with dedicated systems for purging and pre-cooling of the cryogenic infrastructures with nitrogen, hydrogen and helium.



Vacuum monitoring and double containment for maximal safety

On top of a robust construction and full factory preparation - including vacuum pumping - that made Nexans reputation, double containment and continuous vacuum monitoring are undeniable assets for safety management during fueling operations in such places where leakages and spills of propellants must be avoided by all means.

  • Continuous vacuum monitoring allows instant detection in case of mechanical damage of the transfer lines and automatic trigger of safety/emergency procedures
  • Double containment prevents spills by keeping chemicals confined in case of problem



Nexans cryogenic systems already equip world-class rocket launch facilities such as DLR in Germany or SHAR in India. They allow safe transfer of LOX, LH2 and Helium.

LH2 Aerospace infrastructures: DLR German Aerospace Center

127/200 mm

NEXANS CRYOFLEX

300 m

TOTAL LENGTH OF THE LINE

> 30 years

MAINTENANCE-FREE OPERATION

DLR German Aerospace Center

DLR German Aerospace Center is the Federal Republic of Germany's research center for aeronautics and space. They conduct research and development activities in the fields of aeronautics, space, energy, transport. Nexans solutions equips the missile test stand with long distance LH2 transfer lines

Key metrics:

  • Nexans CRYOFLEX®: 127/200 mm
  • Total length of the line: 300m
  • In maintenance-free operation for more than 30 years!
More about Nexans Cryogenic Systems

LH2/LOX/GHe Aerospace infrastructures: Sriharikota High Altitude Range (SHAR)

DN 150

NEXANS HIGHFLEX REFERENCES

GHe, LH2, LOX

CRYOGENIC FLUIDS TRANSFERED

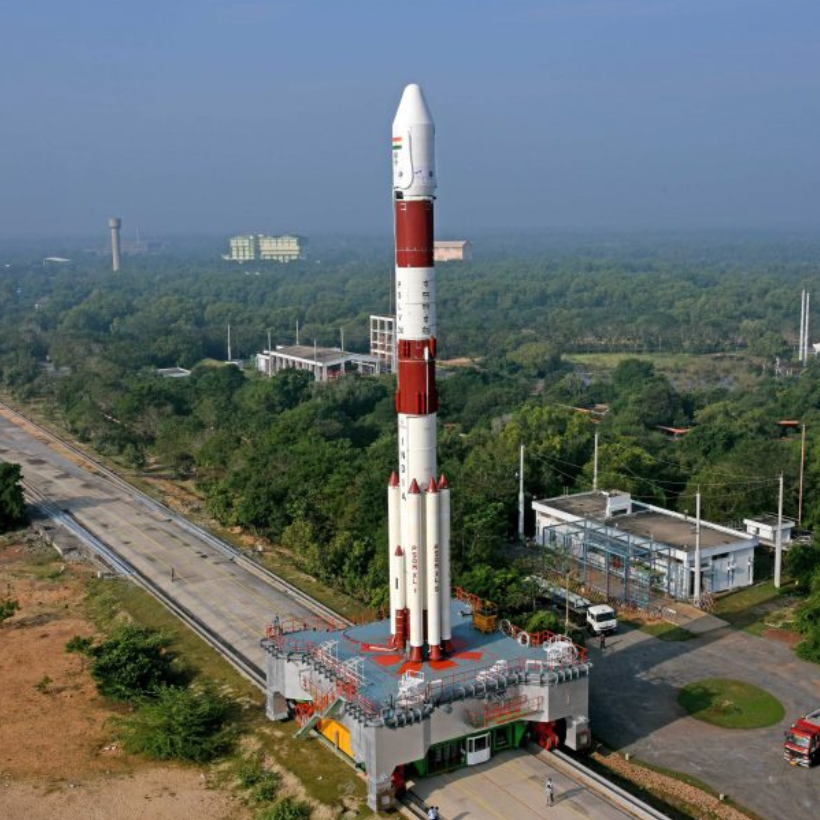

Second Launch Pad of Satish Dhawan Space Centre, Sriharikota - Indian Space Research Organisation
Sriharikota High Altitude Range (SHAR)

Sriharikota High Altitude Range (SHAR) is a rocket launch space center with facilities for the launching of sounding rockets and multi-stage satellite launch vehicles, operated by Indian Space Research Organisation (ISRO). Nexans provided vacuum insulated flexible hoses for the safe transport of LH2 and LOX rocket fuel.

Key metrics:

  • Nexans HIGHFLEX: several references from DN16 to DN 150
  • Cryogenic fluids transfered: GHe, LH2, LOX
More about Nexans Cryogenic Systems
